Understanding the Operation of Aseptic Diaphragm Valves

Aseptic diaphragm valves are essential in industries that demand stringent hygiene standards, such as pharmaceuticals, bioprocessing, food and beverage, and cosmetics. These valves are meticulously designed to ensure aseptic conditions, preventing contamination and maintaining the integrity of the process fluids. This blog focuses on the operation of aseptic diaphragm valves from SED Flowcontrol, highlighting their design, functionality, and benefits. Click here to see all the SED Aseptic Diaphragm Valves at A&C Engineering.

DOWNLOAD THE CATALOG NOW

Download the catalog from SED Flowcontrol about Valves for aseptic applications.

Download the Catalog

Operational Overview of Aseptic Diaphragm Valves

Aseptic diaphragm valves operate by using a flexible diaphragm that presses against a weir or seat, creating a seal that isolates the process media from the external environment. Here’s a detailed look at how these valves function:

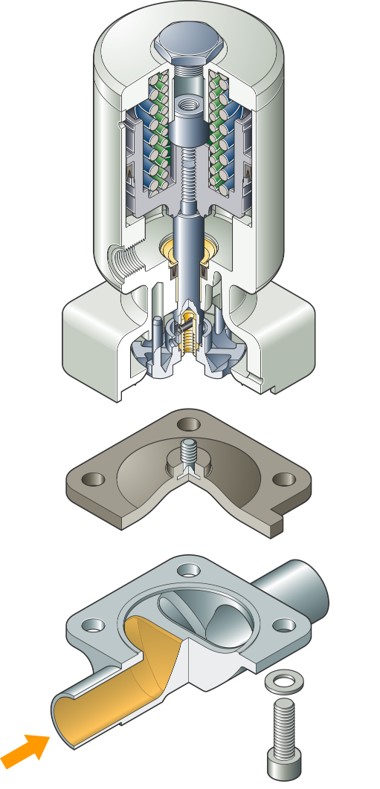

Basic Components and Structure

Diaphragm: The heart of the valve, made from resilient materials such as EPDM, PTFE, or TFM, it provides a flexible sealing surface.

Body: Constructed from high-quality materials like stainless steel, it houses the diaphragm and supports the flow path.

Bonnet: Contains the actuator mechanism and connects to the diaphragm, transmitting the actuator’s motion to the diaphragm.

Actuator: Can be manual, pneumatic, or electric, it drives the diaphragm to open or close the valve.

Operating Mechanism

Opening the Valve: When the actuator is engaged, it lifts the diaphragm away from the weir or seat, creating a gap that allows fluid to pass through the valve.

Closing the Valve: When the actuator is disengaged, the diaphragm is pressed against the weir or seat, forming a seal that stops fluid flow and isolates the process media.

Control and Modulation: The actuator can be precisely controlled to modulate the valve’s position, allowing for accurate flow control.

Flow Path and Sterility

Streamlined Fluid Passage: The valve body is designed with a smooth, streamlined flow path that minimizes turbulence and fluid retention, crucial for maintaining sterility.

Self-Draining Design: Ensures complete drainage of process fluids, preventing contamination and facilitating cleaning processes.

Advanced Features Enhancing Operation

Aseptic diaphragm valves incorporate several advanced features that enhance their operation:

Positive Closure and Isolation

Tight Sealing: The diaphragm bead ensures a positive closure against the weir, preventing any leakage and ensuring a sterile barrier.

Bonnet Isolation: The diaphragm isolates the bonnet and actuator from the process media, protecting the internal components from contamination and corrosion.

In-Line Maintenance and Modular Design

Top-Entry Design: Allows for in-line maintenance without removing the valve from the pipeline, reducing downtime and maintenance efforts.

Modular Construction: Facilitates easy customization and replacement of parts, enhancing the valve’s adaptability to different processes.

Diaphragm Technology

Flexible Diaphragm Suspension: Prevents point loading and distributes stress evenly across the diaphragm, extending its lifespan and reliability.

Encapsulated Diaphragms: Prevent extrusion and leakage, ensuring consistent performance under varying pressure and temperature conditions.

Specialized Configurations for Enhanced Operation

A&C Engineering offers various valve configurations designed to meet specific operational needs. For instance, the multiport valves feature a design that minimizes dead legs and hold-up volume, enhancing sterility and efficiency in the fluid handling process. Additionally, these valves ensure complete drainage, which is crucial for processes requiring high levels of cleanliness. The tank valves, on the other hand, are constructed from solid bar stock, providing durability and reducing the risk of contamination, making them suitable for high-purity applications. They also offer easy mounting, being compatible with SED Flowcontrol Steripur Series actuators, which simplifies installation and operation.

Control and Automation

Aseptic diaphragm valves from SED Flowcontrol are equipped with control head switches and position feedback systems that enhance automation and operational efficiency. The position feedback feature provides real-time information on the valve’s position, enabling precise control and monitoring. Moreover, pre-wired connections simplify assembly and integration into automated systems, thereby reducing installation time and costs.

Conclusion

The operational excellence of SED Flowcontrol aseptic diaphragm valves lies in their innovative design, advanced materials, and precise control mechanisms. These valves are engineered to ensure sterility, reliability, and ease of maintenance, making them indispensable in industries where hygiene and process integrity are critical. Understanding their operation helps users appreciate the technological advancements and meticulous engineering that go into making aseptic diaphragm valves a trusted choice for aseptic processes. The valves are available at A&C Engineering. If you have any questions or need further information, please feel free to contact us.
