Pinch solenoid valves are engineered to provide precise control over fluid flow by compressing flexible tubing against a rigid housing using a solenoid coil. This innovative mechanism makes them ideal for applications where accuracy and compatibility with diverse fluids are crucial, such as pharmaceutical manufacturing and laboratory setups.

One of their standout features is their ability to handle a wide range of fluids without risking contamination or damage to valve components. This is because only the tubing comes into contact with the fluid, minimizing the chances of cross-contamination.

Moreover, pinch solenoid valves offer exceptional control over flow rates, allowing operators to adjust pressure levels to achieve precise dosing and metering. This capability is particularly beneficial in medical devices like infusion pumps, where accurate fluid delivery is essential for patient safety and treatment efficacy.

Additionally, their compact and lightweight design makes them easy to integrate into existing systems or machinery, enhancing overall efficiency. With minimal maintenance requirements, pinch solenoid valves contribute to reduced downtime and operational costs, making them a cost-effective solution for fluid control needs across various industries.

2/2 way direct acting

21Z series

 2 way direct acting bidirectional, N.C., N.O.
 Total Separation, Pinch Solenoid Valves
 Pipe 1,65 x 0,76 mm, Pipe 12×7 mm, Pipe 3,18×1,57 mm, Pipe 3,18×1,98, Pipe 6×3,5 mm
 Anodized Aluminium
 Chemical, Coffee machines, Medical

3/2 way direct acting

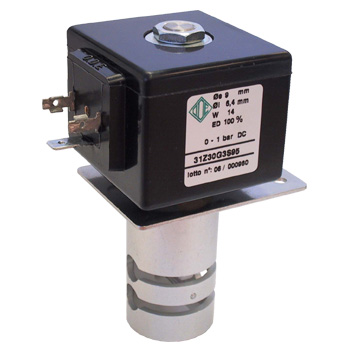

31Z series

 3 way direct acting Bidirectional, N.C.
 Total Separation, Pinch Solenoid Valves
 Pipe 9 x 6,40
 Anodized Aluminium
 Chemical, Coffee machines, Medical, Steam, Water treatment, Chemical/Petrochemical
