Direct Operated Proportional Directional Control Valves Gen IV: New Features
DFPLUS VALVES
The Growing Demand for Advanced Valve Solutions
As industry moves toward more complex machinery and automation, demand has increased for precise control systems that can manage very fast, complex processes. Direct operated proportional directional control valves help companies in sectors such as machine tools, marine applications and industrial casting optimize control, increase precision and improve operational efficiency.
In today’s industrial world, systems are more connected than ever, with hydraulic and electrical components needing to work together smoothly. The problem is that traditional valves can’t always keep up with the demands of modern machinery, which requires greater flexibility and precision. Choosing the right valve can significantly boost efficiency, reduce downtime, and prevent expensive breakdowns.
Facility owners are under increasing pressure to keep operations running smoothly. A single machine failure in a large plant can lead to huge financial losses, sometimes in the thousands or even millions per hour. Because of this, having reliable, high-performance valve systems is more crucial than ever.
Series D1FP/D3FP: The Parker Solution

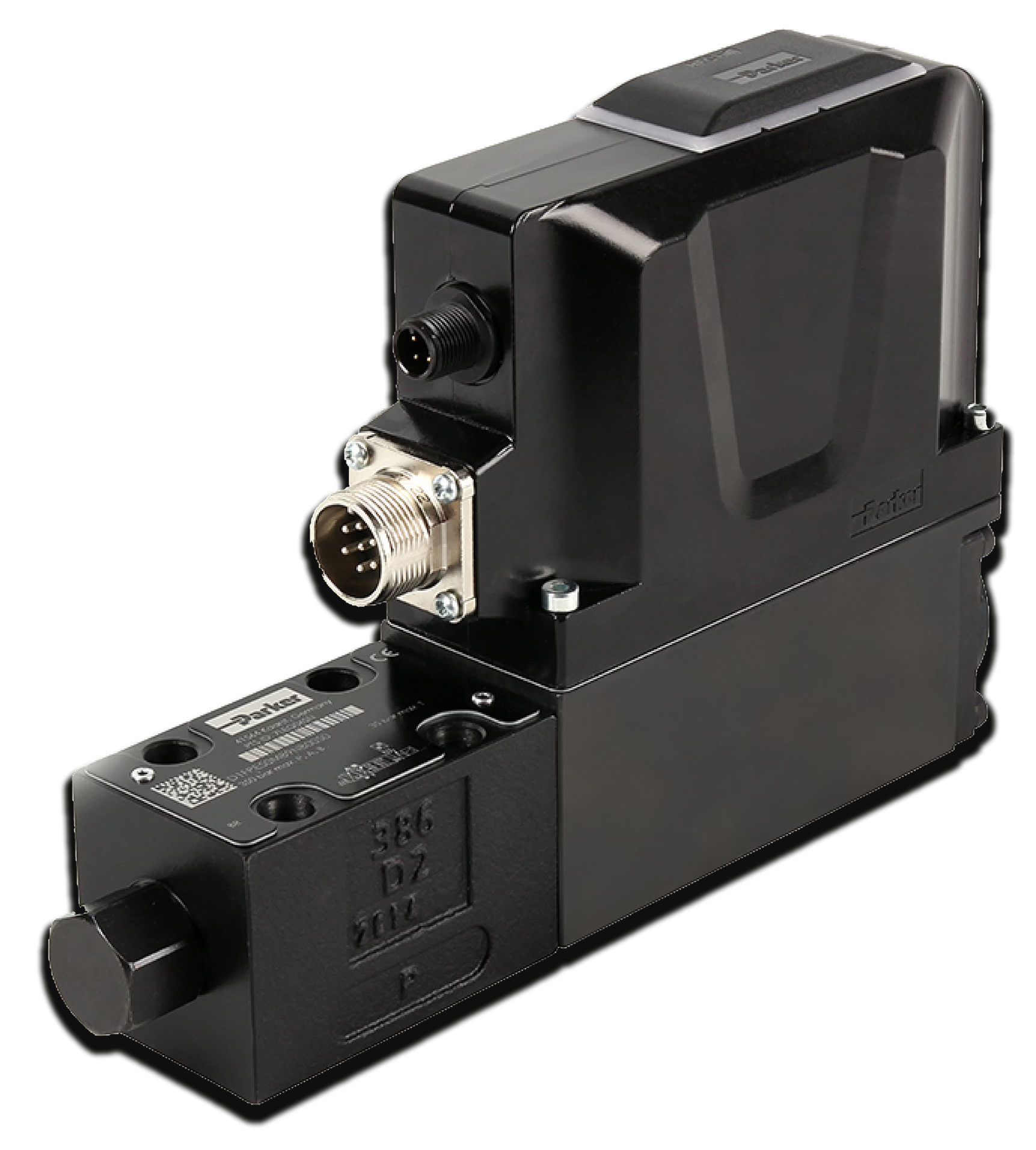

Parker’s Direct Operated Proportional Directional Control Valves, part of the DFPlus series (D1FP/D3FP), are built to handle the complex demands of modern industrial systems. These valves are direct-operated, delivering highly dynamic performance with precise control over hydraulic axes, pressure, and velocity. With cutting-edge technology, Parker’s DFPlus valves set a new standard in proportional valve systems.
These directional control valves are exceptional due to their combination of maximum flow and high dynamic performance, making them ideal for applications that demand top-level accuracy. Powered by Parker’s patented VCD® (Voice Coil Drive) actuator, these valves offer a frequency response comparable to real servo valves. This level of responsiveness ensures efficient and accurate control, even in the toughest environments.
Key Features of Directional Control Valves
- High Dynamic Response: With a 350Hz response time, these valves are designed for fast, precise control. Whether in machine presses, blow molding, or marine applications, their rapid actuation ensures optimized performance with minimal delays.
- IO-Link Interface Communication: The IO-Link interface enhances functionality by allowing direct communication with a PLC, giving access to real-time data, valve parameters, and error messages. This communication protocol helps operators make informed decisions, improving efficiency and reducing downtime.
- NFC-Based Diagnostics: These valves also feature Near Field Communication (NFC) technology for easy diagnostics and configuration. With an NFC-enabled device, operators can access key data like diagnostics, error history, and real-time performance metrics using the “Parker Device Connect” app, available for both iOS and Android.
- 360-Degree RGB-LED Display: The 360-degree RGB-LED display provides instant visual feedback on valve status. Color-coded and with flashing indicators, this feature makes it easy to check if the valve is working correctly or needs attention, simplifying maintenance and reducing downtime.
-
Pressure Compensation Membrane: Harsh environments can challenge valve performance, especially when temperature changes create pressure imbalances that allow moisture to enter. Parker’s DFPlus valves come with a pressure compensation membrane that protects onboard electronics from moisture, ensuring long-term reliability.- Backward Compatibility: Upgrading to the DFPlus Gen IV valves is hassle-free for those using previous generations, as these directional control valves are 100% backward-compatible, offering the same installation dimensions and technical performance. This seamless transition minimizes installation complexity and costs.
Application Areas of the Directional Control Valves
The versatility of the D1FP/D3FP valves makes them suitable for a broad range of applications, including:
– General Machine Presses: The high precision and rapid response of these valves make them ideal for controlling hydraulic axes in machine presses, optimizing performance and reducing cycle times.
– Blow Molding: These valves ensure the consistent, precise control of pressure and velocity required in the blow molding process.
– Marine Diesel Applications: Marine environments can be harsh, but the rugged design and pressure compensation features of these valves make them suitable for diesel fuel injection and exhaust valve control in marine settings.
– Machine Tools: The combination of real servo valve dynamics and repeatability ensures process accuracy and reliability, even in highly demanding machine tool applications.
Conclusion
Parker’s D1FP/D3FP valves in the DFPlus Series offer unmatched precision, adaptability, and reliability for even the most demanding industrial applications. Whether you’re upgrading from a previous generation or looking for a high-performance solution for new installations, these valves are designed to meet modern industrial challenges.
Available through A&C Engineering, a Premier Distributor of Parker, these valves are the perfect solution for improving your system’s performance. If you have any questions or need help selecting the right valve, feel free to reach out to us. We’re here to assist you.
