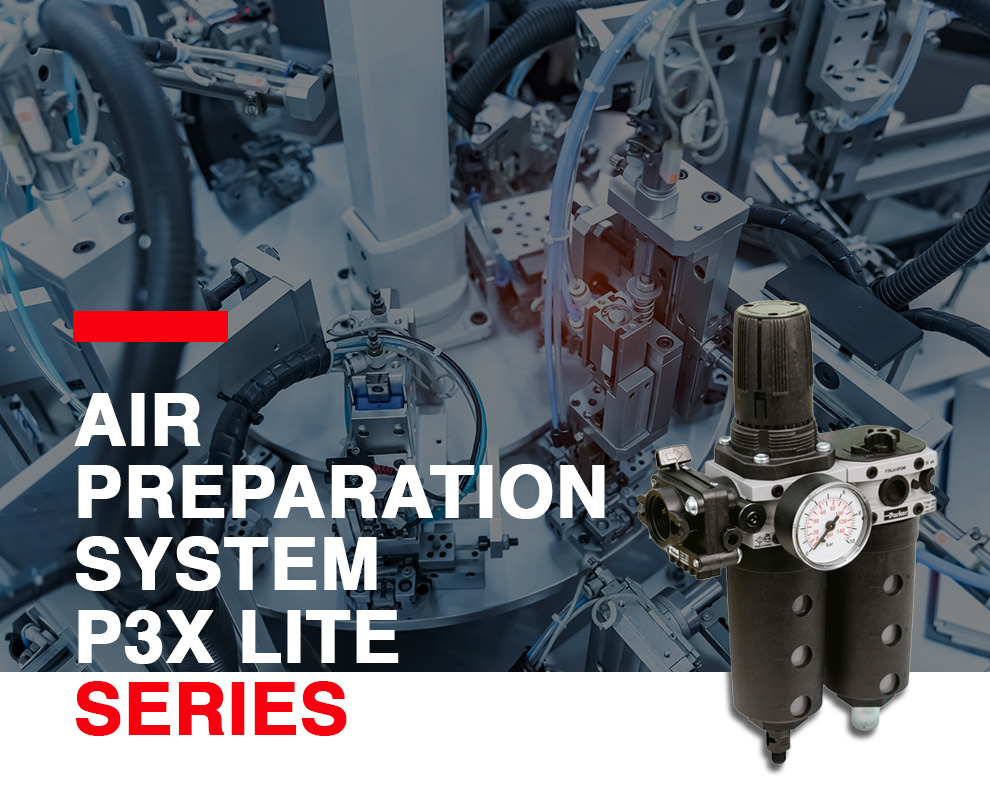

Parker P3X Filter Regulators for Reliable Air Preparation
Clean and stable compressed air forms the foundation of every reliable pneumatic system. Production lines, assembly stations, packaging equipment, robots, and control systems all depend on air that carries no harmful particles and arrives at the correct pressure. When air contains moisture, rust, dust, or fluctuating pressure, the result is predictable. Machines wear faster, movements become inconsistent, and production costs increase. A dependable air preparation system prevents these problems and protects the entire installation.
The Parker P3X Filter Regulator offers a complete and modern solution for these requirements. It belongs to the P3X Lite Series, a system that combines high efficiency, low weight, and strong resistance to harsh environments. It is engineered to supply clean air and stable pressure while remaining simple to install and maintain.
This blog explains why the Parker P3X Filter Regulator delivers such strong results, how it improves air quality and pressure stability, and why it fits a wide range of industrial applications.
Download The Air Preparation System P3X Lite Series Catalog
What Is the Parker P3X Filter Regulator?
The Parker P3X Filter Regulator is a compact, modular unit that combines two essential air preparation functions:
- Filtration: removing dirt, moisture, rust, and impurities from compressed air.
- Pressure regulation: ensuring stable and accurate output pressure for downstream equipment.
Instead of buying and installing separate components, the P3X series integrates both into a single unit, saving space, reducing installation time, and simplifying maintenance.
Lightweight construction for long term reliability
The P3X Lite Series uses advanced technopolymer materials rather than conventional metal parts. This material reduces total weight by up to forty five percent and remains fully resistant to corrosion in challenging environments that contain synthetic oils or antifreeze fluids. This means a P3X Filter Regulator stays reliable in areas where standard metal components often deteriorate. The reduced weight also simplifies installation because the units are easier to handle and require less structural support. At the same time, the strong technopolymer structure maintains full mechanical strength and resists impact and vibration during operation.
The lighter construction provides another advantage. Parker designed a universal body that reduces the need for many different variants. This simplifies ordering, storage, and maintenance, which helps users lower logistic costs and keep systems running with fewer spare parts.
Clean, Dry, Reliable Air Through Efficient Filtration
The core role of the filter regulator is to clean the incoming air before delivering it downstream at a controlled pressure level. The P3X Filter Regulator achieves this through a high-efficiency 5-micron filter element, which removes common contaminants like dust, rust particles, scale, and moisture droplets. A 40-micron element is also available for less demanding applications.
Inside the filter housing, Parker uses a two-stage filtration process to ensure excellent water removal efficiency. Even at high flow rates, the filter maintains low pressure drop, which helps keep air consumption efficient and reduces the energy load on the compressor. Drain options include an automatic drain or a combined manual/semi-auto drain, both designed to remove accumulated moisture without interrupting operation.
Accurate and Stable Pressure Regulation
Pressure stability is another critical factor for any pneumatic system. Even small fluctuations in pressure can cause actuators to move inconsistently, tools to lose torque, and automated processes to become unreliable. The P3X Filter Regulator addresses this with a rolling diaphragm design, engineered for long service life and excellent responsiveness. The diaphragm maintains stable output pressure even during rapid changes in flow demand.
Users can choose relieving or non-relieving versions, and even tamper-proof models that can be locked to prevent unauthorized adjustment. This is especially valuable in production environments where maintaining a fixed pressure is important for quality control.
High Flow Performance for Demanding Industrial Applications
Many production lines depend on high flow rates to ensure fast actuation and maximum efficiency. The Parker P3X Filter Regulator is specifically designed for “hi-flow industrial applications,” offering flow rates up to 111–113 dm³/s depending on the port size selected (1/2″ or 3/4″).
This high flow capacity allows the unit to support:
- Large pneumatic cylinders
- Air tools
- Multiple actuators running on the same line
- Fast-cycling automation machinery
For facilities aiming to increase speed, reduce cycle time, or support more complex systems, the flow performance of the P3X is a major operational advantage.
A Fully Modular System Designed for Flexibility
One of the strengths of the P3X Lite Series is the ability to easily connect multiple units without needing external piping. Parker’s modular connection system uses simple body-connecting kits that maintain consistent mounting centers and create a clean, professional-looking installation.
Multiple P3X components such as particulate filters, coalescing filters, adsorber filters, lubricators, soft start dump valves, slide valves, and manifolds can be linked together seamlessly within the same assembly.
This gives engineers enormous flexibility. For example:
- A standard filter regulator can be paired with a coalescing filter for oil-free air.
- A lubricator can be added downstream for tools that require mist lubrication.
- A dump valve can be included for safe pressure release during maintenance.
- A manifold can be added to supply multiple machines from a single treated air source.
Because these units are modular, they can be adapted or expanded at any time, making the P3X system suitable for both simple and highly complex pneumatic installations.
Conclusion
The Parker P3X Filter Regulator stands out as a dependable and efficient solution for any industrial environment that relies on clean and consistent compressed air. Its strong technopolymer construction, accurate regulation, modular design, and reliable filtration create a stable foundation for pneumatic systems of all sizes. The result is improved equipment life, reduced downtime, and more predictable performance.
The complete P3X Lite Series, including the filter regulators described in this blog, is available at A&C Engineering. You can contact us for enquiries, product information, or any other questions related to your air preparation needs. We are ready to help you select the right configuration for your application.
