Parker's Seal-Lok O-Ring Face Seal (ORFS): The Ultimate Leak-Free Solution

Parker’s Seal-Lok O-Ring Face Seal (ORFS) fittings provide a solution that ensures reliability, durability, and performance. Designed to meet and exceed the stringent requirements of SAE J1453 and ISO 8434-3, these fittings are widely accepted across international markets. But what makes Seal-Lok ORFS stand out? Let’s see the advantages, features, and applications to understand why this technology is a good choice for many industries.

What is Parker Seal-Lok O-Ring Face Seal?

The Seal-Lok ORFS is a type of hydraulic fitting designed with a flat face and an elastomeric O-ring that forms a secure seal when tightened against a flat sealing surface. This design minimizes the risk of leaks, even in high-pressure applications, and provides superior vibration resistance. Unlike traditional fittings that can loosen over time due to system vibrations or over-torquing, Seal-Lok ORFS maintains a robust, leak-free connection over extended periods.

See vibration test data

Key Advantages of Seal-Lok ORFS

1. Zero Clearance Installation

Traditional hydraulic fittings often require additional space for installation and removal, making them inconvenient in tight spaces. The Seal-Lok ORFS fittings allow for zero clearance installation, enabling easy plumbing in confined areas without the need for system modifications.

2. Resistance to Over-Torque and Vibration

One of the common issues with hydraulic fittings is the damage caused by over-torquing. Parker’s Seal-Lok ORFS fittings can withstand up to 200% of the rated torque without sustaining damage. This unlimited reusability ensures long-term reliability and cost-effectiveness.

Additionally, vibration resistance is a major factor in preventing leaks. Seal-Lok fittings reduce the loosening effect of vibrations, making them ideal for heavy-duty applications such as construction, military, and transportation.

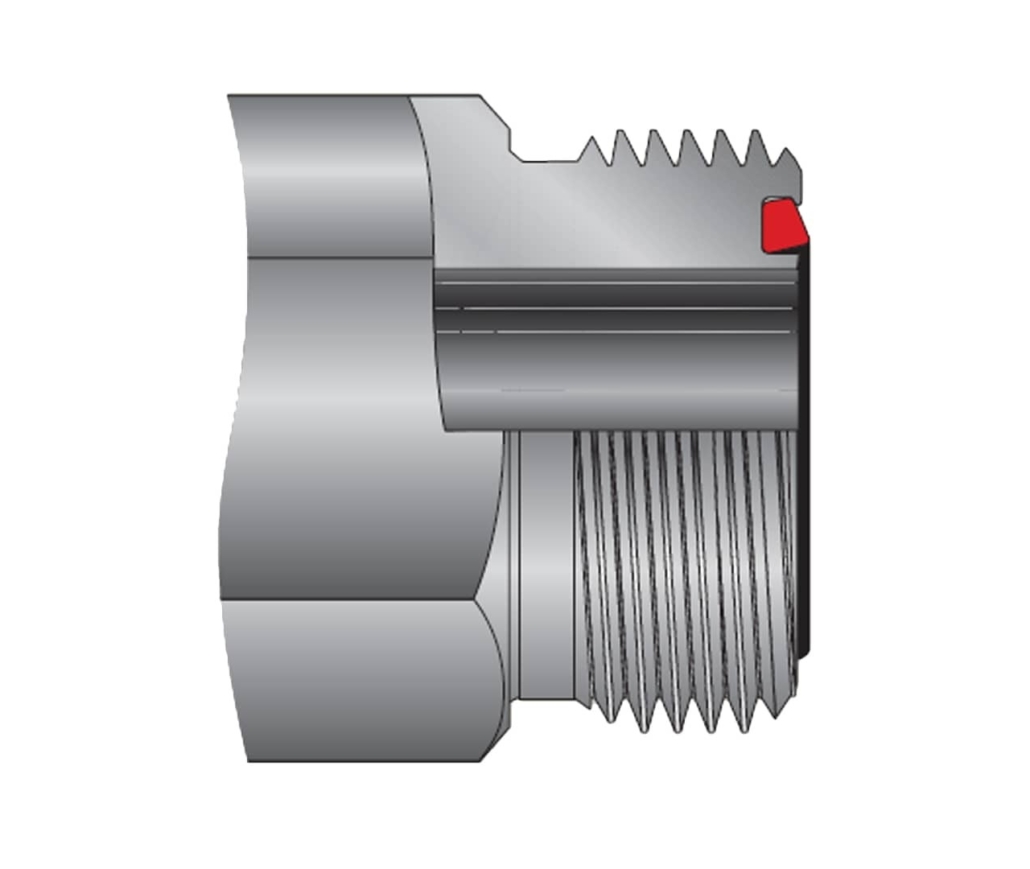

3. Trap-Seal Technology: Eliminating Common ORFS IssuesParker Trap seal design

A major improvement in Parker’s Seal-Lok ORFS fittings is the patented Trap-Seal design. This innovation eliminates two common issues: O-ring fallout during shipping and assembly and O-ring pinching during installation. By securing the O-ring in place, this feature ensures a hassle-free assembly process and prevents potential leaks before they even happen.

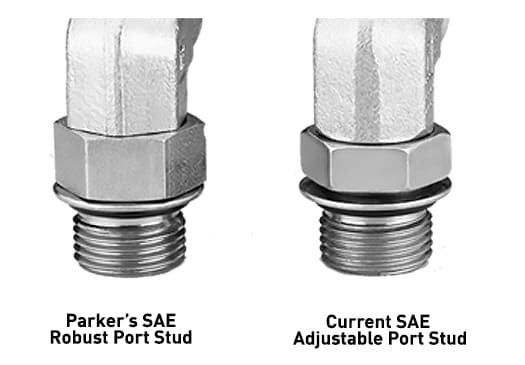

4. Robust Port Stud: Preventing Leaks at Adjustable Ports

Parker’s exclusive Robust Port Stud design significantly improves the reliability of adjustable SAE ports. By incorporating a longer locknut, this design virtually eliminates washer damage, prevents leaks, and simplifies assembly. This not only reduces downtime but also minimizes rework costs due to damaged washers. SAE Robust Port Stud

5. FastSeal Technology: Tool-Free Leak-Free Connections

Seal-Lok ORFS also features the innovative FastSeal connection technology. This breakthrough eliminates the need for brazing or flanging equipment, allowing for quick, leak-free ORFS tube connections using only a wrench. FastSeal reduces installation time and cost, making it a preferred choice for efficient hydraulic system assembly.

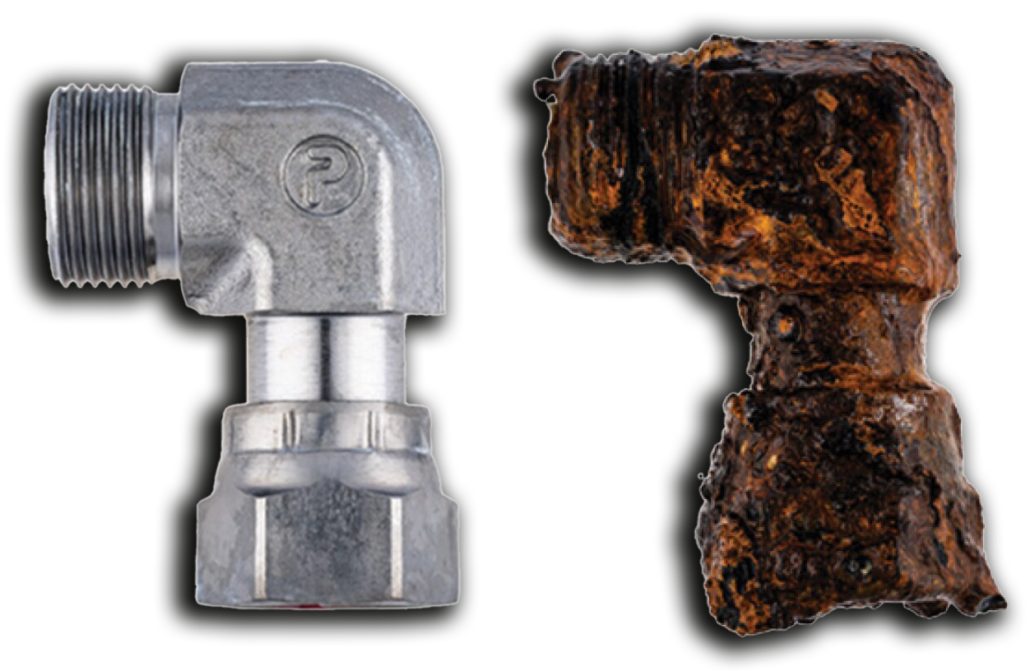

6. ToughShield™ Plus: Superior Corrosion ResistanceTFD_ToughShield-Plus_Corrosion

Corrosion can significantly reduce the lifespan of hydraulic fittings, leading to costly replacements and downtime. Parker’s Seal-Lok ORFS fittings come standard with ToughShield Plus zinc-nickel plating. This industry-leading coating resists red rust for up to 3,000 hours, far exceeding SAE corrosion hour requirements. The enhanced corrosion resistance extends the service life of fittings, reduces maintenance costs, and prevents corrosion migration to adjacent components.

Industries That Benefit from Seal-Lok ORFS

Parker’s Seal-Lok ORFS fittings serve a wide range of industries that require reliable and leak-free hydraulic connections. Some of the key markets include:

  • Construction – Heavy machinery relies on durable hydraulic systems that can withstand rough environments.
  • Military Ground Systems – Defense applications demand robust and vibration-resistant fittings to ensure mission success.
  • Aerial Lift – Safety and reliability are crucial in aerial lift applications where hydraulic systems control critical movements.
  • Agriculture – Farming equipment requires leak-free hydraulic solutions for efficiency and longevity.
  • Material Handling – Forklifts, conveyors, and cranes depend on reliable hydraulic systems.
  • Military Marine – Corrosion resistance is essential in harsh marine environments.
  • Machine Tool – Precision machinery relies on hydraulic fittings that prevent leaks and maintain operational accuracy.
  • Transportation – Vehicles and heavy-duty transport systems require fittings that can handle high pressures and vibrations.
  • Alternative Energy – Renewable energy systems need hydraulic components that ensure efficiency and durability.
  • Off-Shore/Oil & Gas – High-pressure applications in oil and gas demand fittings that can withstand extreme conditions.

See all industries that we serve

Specialized Seal-Lok Variants for Unique Applications

Beyond the standard Seal-Lok ORFS fittings, Parker has developed specialized versions for specific applications:

  • Seal-Lok for CNG (Compressed Natural Gas) – Designed for industry-approved fuel conveyance in natural gas applications.
  • Seal-Lok Xtreme – Features a patented metal seal, enabling leak-free connections in extreme temperature environments, such as LNG (Liquefied Natural Gas) or cryogenic applications.

See all Parker fittings and quick couplings

The Future of Hydraulic Connections

Parker Seal-Lok O-Ring Face Seal fittings provide a solution for hydraulic fluid connections. From construction and transportation to alternative energy, industries worldwide trust Parker’s Seal-Lok ORFS to keep their systems running smoothly and efficiently. By reducing leaks, downtime, and maintenance costs, these fittings contribute to increased productivity and profitability.

For those seeking a reliable, durable, and high-performance hydraulic fitting solution, Parker’s Seal-Lok ORFS is the clear choice. These seals can be purchased at A&C Engineering, a Premier Distributor of Parker. Contact us for more details and expert advice on selecting the right Seal-Lok solution.
